Why iPhone 6 call failed and has no service sometimes

Are you struggling in fixing iPhone call failed error right now? especially when you have to make a phone call with an important person.but your iPhone shows “call failed”,When iPhone is dropping calls, it is usually because the signal in the particular area is weak. This issue can be really annoying, we will help you fix iPhone call failed error.

IPhone 6 has call failure. Especially during charging, the signal disappears suddenly and the iPhone fails to call even with signal.

Repair Process

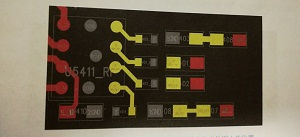

This kind of trouble is caused by two ways. One is the RF power chip and U5411_RF. The sudden change of signal during charging is caused by the damage of U5411_RF or the working condition is not qualified. The material object of U5411_RF is shown in picture 1-19.

First measure the iphone diode data between the two power supply pins of U5411_RF and two signal wires of the RFFE bus. The measure location is shown in picture 1-20.

When the probe of Digital Multimeter touch the L5408_RF inductance，the inductance becomes askew and becomes black at the ends of it, as shown in picture 1-21.

Pull out the inductance and connect it with tin. Turn on iPhone and plug the charger into, the signal and dialing become normal after testing. The trouble is removed.
